Manganese in PDB 9bz9: Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex

Enzymatic activity of Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex

All present enzymatic activity of Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex:
1.17.4.1;

Other elements in 9bz9:

The structure of Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex also contains other interesting chemical elements:

Magnesium (Mg) 2 atoms

Manganese Binding Sites:

The binding sites of Manganese atom in the Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex (pdb code 9bz9). This binding sites where shown within 5.0 Angstroms radius around Manganese atom.
In total 4 binding sites of Manganese where determined in the Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex, PDB code: 9bz9:
Jump to Manganese binding site number: 1; 2; 3; 4;

Manganese binding site 1 out of 4 in 9bz9

Go back to Manganese Binding Sites List in 9bz9

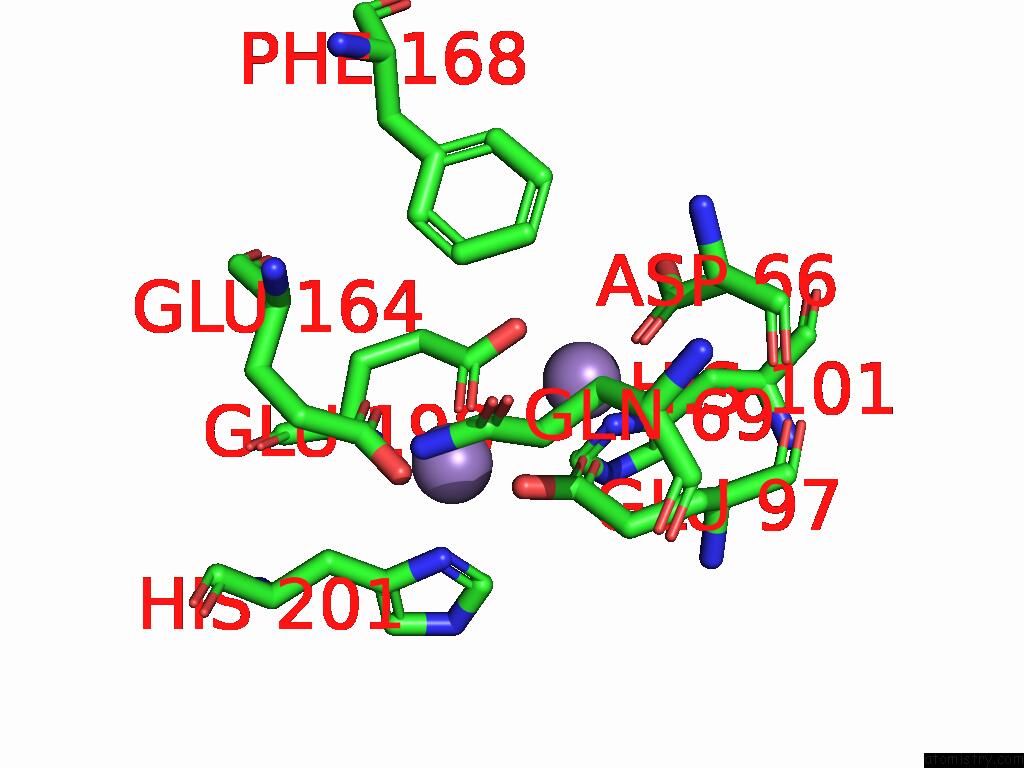

Manganese binding site 1 out of 4 in the Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex


Mono view

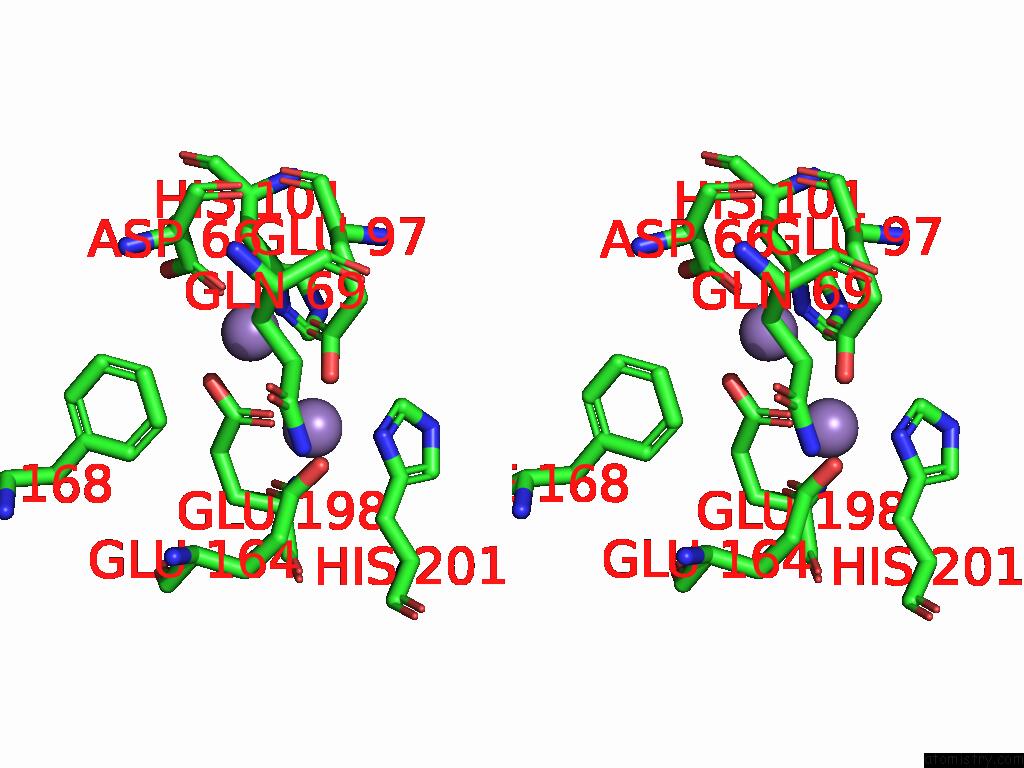

Stereo pair view

A full contact list of Manganese with other atoms in the Mn binding site number 1 of Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Mn401

b:25.1
occ:0.85
 OE2 C:GLU97 2.0 29.2 1.0
OE2 C:GLU164 2.0 28.6 1.0
OE1 C:GLU164 2.1 28.8 1.0
OE1 C:GLU198 2.2 27.6 1.0
CD C:GLU164 2.3 29.2 1.0
ND1 C:HIS201 2.4 20.7 1.0
CD C:GLU97 2.8 26.3 1.0
OE1 C:GLU97 3.0 29.9 1.0
CG C:HIS201 3.3 21.8 1.0
CD C:GLU198 3.4 26.3 1.0
CE1 C:HIS201 3.4 22.3 1.0
CB C:HIS201 3.5 21.8 1.0
MN C:MN402 3.7 26.4 0.8
CG C:GLU164 3.9 27.1 1.0
OE2 C:GLU198 4.1 26.9 1.0
CA C:GLU198 4.2 24.2 1.0
CG C:GLU97 4.2 24.4 1.0
CB C:GLU198 4.4 24.1 1.0
CG C:GLN69 4.4 24.3 1.0
CG C:GLU198 4.4 25.0 1.0
NE2 C:HIS201 4.5 22.5 1.0
CD2 C:HIS201 4.5 22.1 1.0
CE2 C:PHE168 4.6 30.2 1.0
NE2 C:GLN69 4.8 27.7 1.0
CB C:GLU164 4.8 26.2 1.0
OD1 C:ASP66 4.9 27.5 1.0
CE1 C:HIS101 5.0 22.6 1.0
N C:GLU198 5.0 23.9 1.0

Manganese binding site 2 out of 4 in 9bz9

Go back to Manganese Binding Sites List in 9bz9

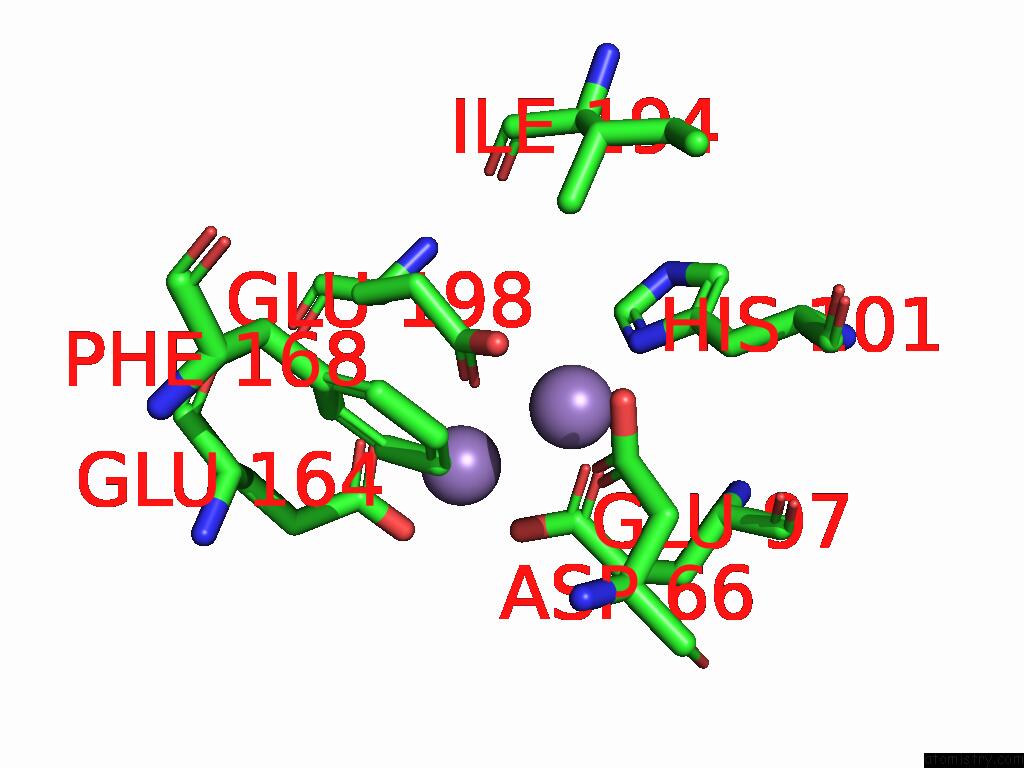

Manganese binding site 2 out of 4 in the Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex


Mono view

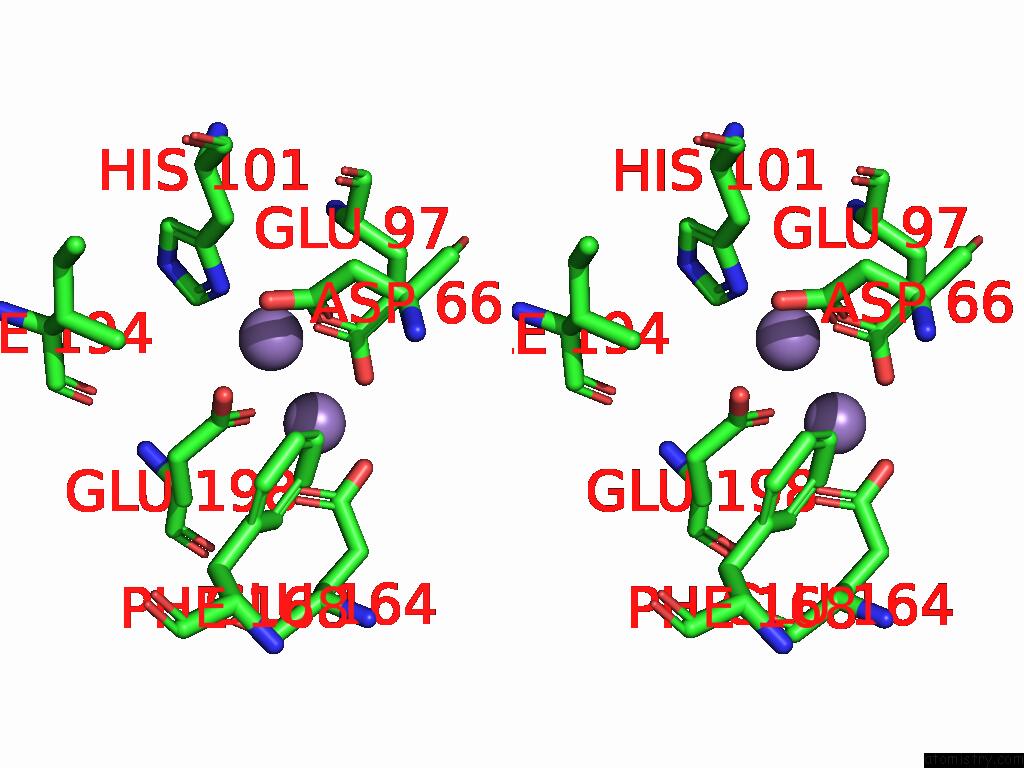

Stereo pair view

A full contact list of Manganese with other atoms in the Mn binding site number 2 of Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Mn402

b:26.4
occ:0.85
 OD1 C:ASP66 2.0 27.5 1.0
OE2 C:GLU198 2.1 26.9 1.0
OE1 C:GLU97 2.1 29.9 1.0
ND1 C:HIS101 2.2 22.8 1.0
OE1 C:GLU198 2.7 27.6 1.0
CD C:GLU198 2.7 26.3 1.0
CG C:ASP66 2.9 24.6 1.0
CE1 C:HIS101 3.1 22.6 1.0
OD2 C:ASP66 3.1 28.0 1.0
CD C:GLU97 3.2 26.3 1.0
CG C:HIS101 3.2 23.0 1.0
CB C:HIS101 3.6 23.3 1.0
OE2 C:GLU97 3.7 29.2 1.0
MN C:MN401 3.7 25.1 0.8
CZ C:PHE168 3.9 29.8 1.0
CA C:GLU97 4.2 22.0 1.0
CG C:GLU198 4.2 25.0 1.0
CE2 C:PHE168 4.2 30.2 1.0
NE2 C:HIS101 4.2 21.8 1.0
CB C:ASP66 4.3 22.2 1.0
CD2 C:HIS101 4.3 23.2 1.0
CG2 C:ILE194 4.4 21.9 1.0
CG C:GLU97 4.4 24.4 1.0
CB C:GLU97 4.5 22.0 1.0
CE1 C:PHE168 4.8 28.5 1.0
O C:GLU97 4.8 22.2 1.0
N C:GLU97 4.9 21.2 1.0
CA C:ASP66 4.9 22.0 1.0
OE1 C:GLU164 4.9 28.8 1.0

Manganese binding site 3 out of 4 in 9bz9

Go back to Manganese Binding Sites List in 9bz9

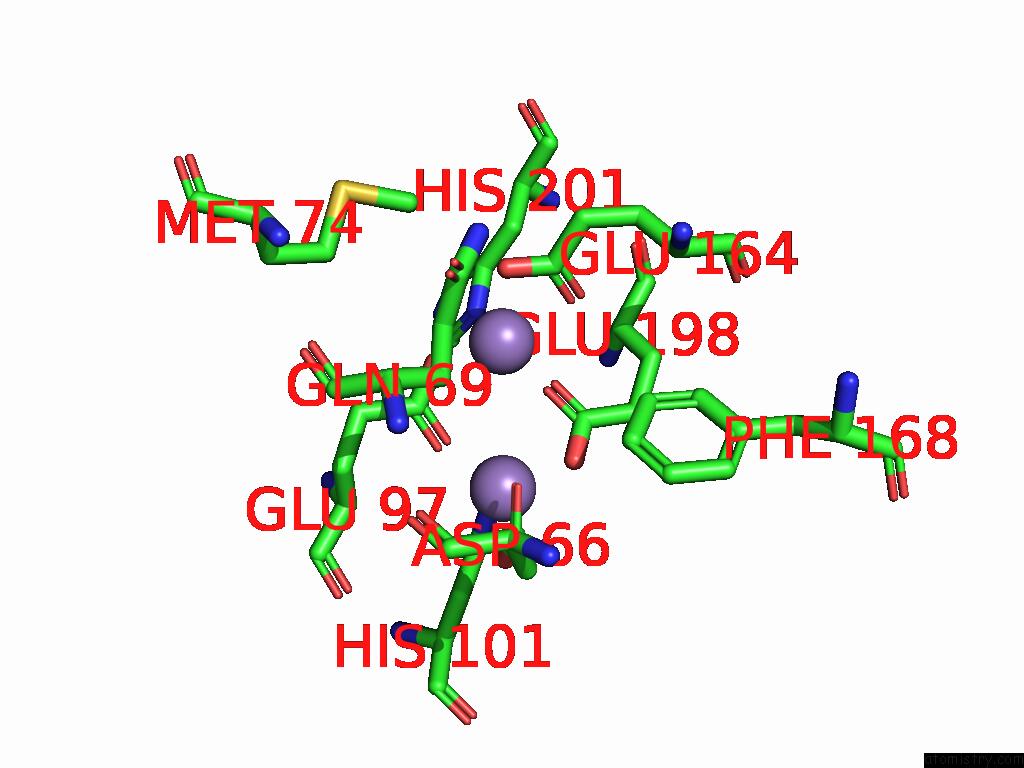

Manganese binding site 3 out of 4 in the Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex


Mono view

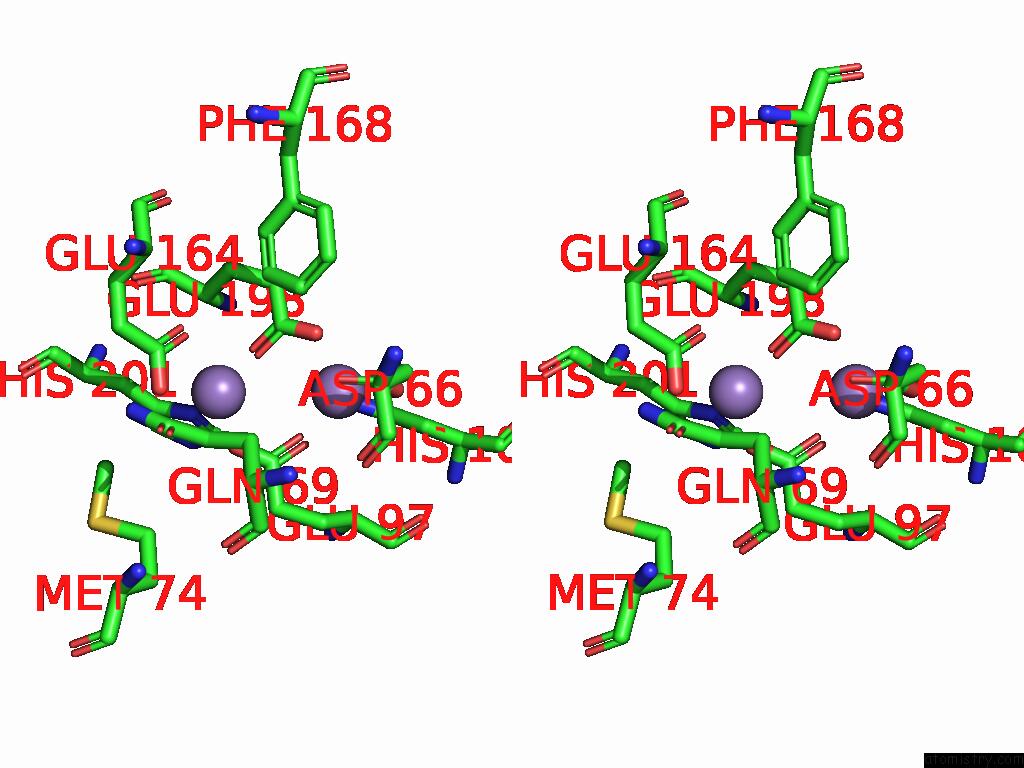

Stereo pair view

A full contact list of Manganese with other atoms in the Mn binding site number 3 of Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Mn401

b:22.5
occ:1.00
 OE2 D:GLU97 1.9 27.5 1.0
OE1 D:GLU198 2.1 25.1 1.0
OE1 D:GLU164 2.3 28.0 1.0
OE2 D:GLU164 2.3 25.5 1.0
ND1 D:HIS201 2.3 18.4 1.0
CD D:GLU164 2.7 24.2 1.0
CD D:GLU97 2.9 24.1 1.0
CD D:GLU198 3.1 24.0 1.0
OE1 D:GLU97 3.2 26.4 1.0
CE1 D:HIS201 3.2 18.3 1.0
CG D:HIS201 3.4 19.2 1.0
OE2 D:GLU198 3.7 24.5 1.0
CB D:HIS201 3.7 19.8 1.0
MN D:MN402 3.9 24.7 1.0
CA D:GLU198 4.2 20.7 1.0
CG D:GLU164 4.2 22.2 1.0
CG D:GLU97 4.3 23.1 1.0
CG D:GLN69 4.3 27.8 1.0
CG D:GLU198 4.3 22.0 1.0
NE2 D:HIS201 4.4 20.0 1.0
CB D:GLU198 4.4 20.6 1.0
CE D:MET74 4.5 28.9 1.0
OD1 D:ASP66 4.5 26.9 1.0
CD2 D:HIS201 4.5 17.6 1.0
N D:GLU198 4.8 20.6 1.0
CE2 D:PHE168 4.8 22.1 1.0
CE1 D:HIS101 4.9 19.9 1.0
NE2 D:GLN69 4.9 28.2 1.0
ND1 D:HIS101 5.0 20.5 1.0

Manganese binding site 4 out of 4 in 9bz9

Go back to Manganese Binding Sites List in 9bz9

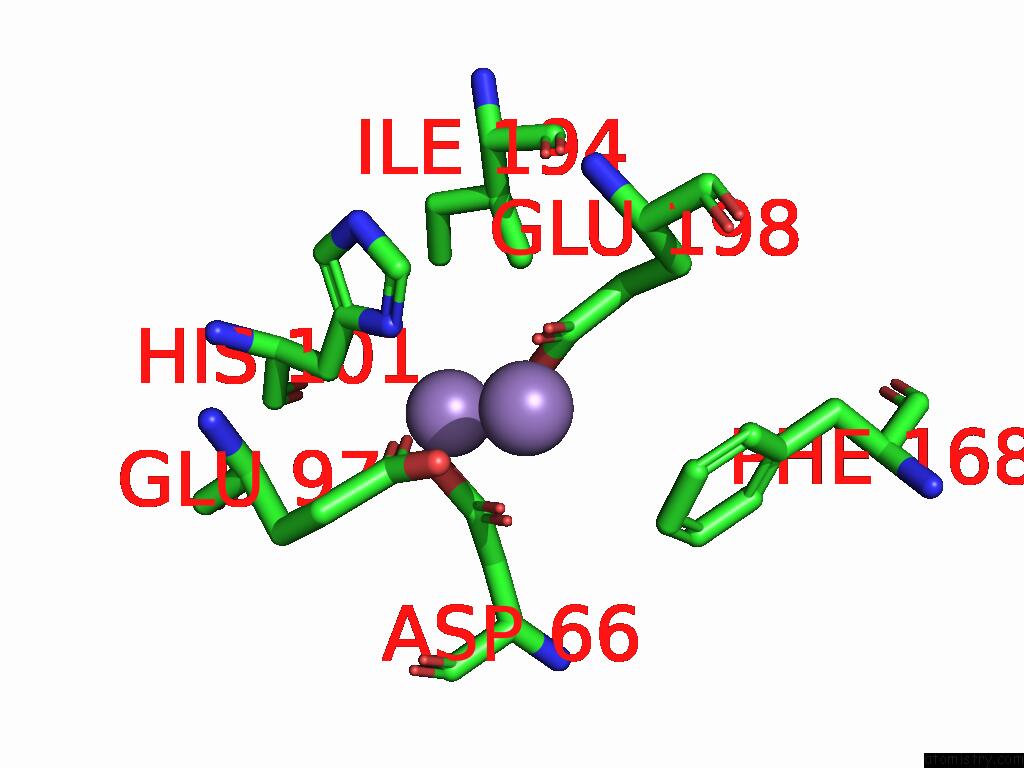

Manganese binding site 4 out of 4 in the Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex


Mono view

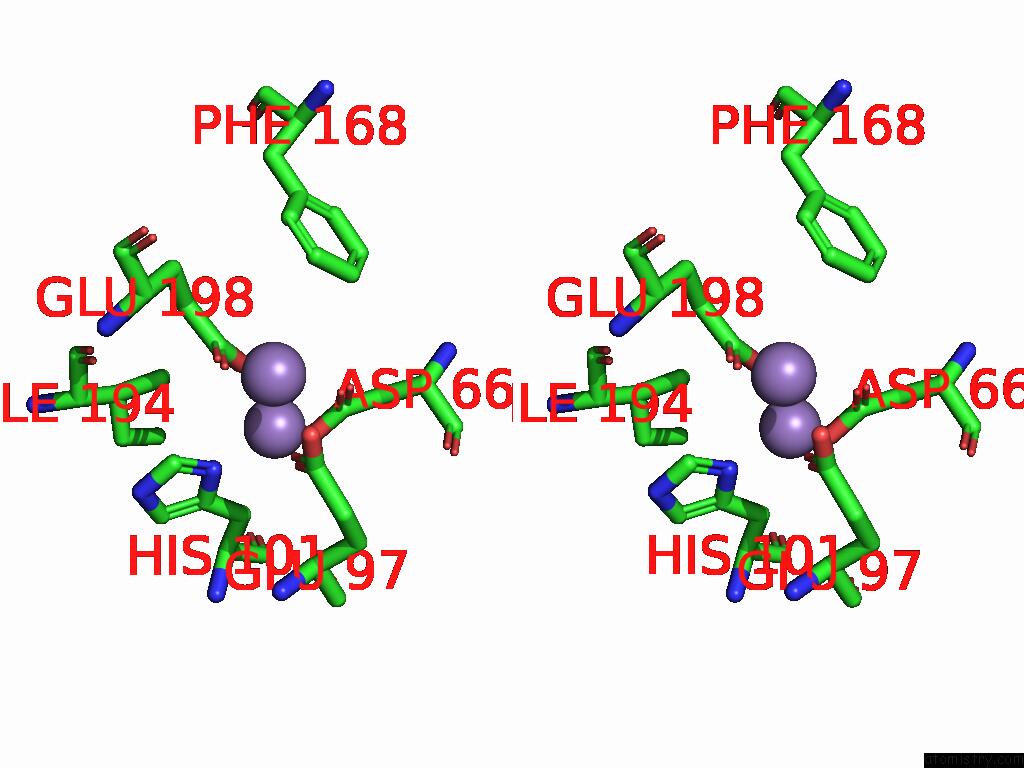

Stereo pair view

A full contact list of Manganese with other atoms in the Mn binding site number 4 of Class 15 Model For Combined Refinement of Bacillus Subtilis Ribonucleotide Reductase Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Mn402

b:24.7
occ:1.00
 OE1 D:GLU97 2.0 26.4 1.0
OE2 D:GLU198 2.1 24.5 1.0
ND1 D:HIS101 2.1 20.5 1.0
OD2 D:ASP66 2.2 23.1 1.0
OD1 D:ASP66 2.3 26.9 1.0
CG D:ASP66 2.5 25.8 1.0
CD D:GLU198 3.0 24.0 1.0
CE1 D:HIS101 3.1 19.9 1.0
CG D:HIS101 3.2 22.8 1.0
CD D:GLU97 3.2 24.1 1.0
OE1 D:GLU198 3.2 25.1 1.0
CB D:HIS101 3.5 23.2 1.0
OE2 D:GLU97 3.8 27.5 1.0
MN D:MN401 3.9 22.5 1.0
CB D:ASP66 4.0 25.5 1.0
CA D:GLU97 4.2 23.5 1.0
NE2 D:HIS101 4.2 21.6 1.0
CD2 D:HIS101 4.3 21.0 1.0
CG D:GLU97 4.3 23.1 1.0
CB D:GLU97 4.3 23.1 1.0
CG D:GLU198 4.4 22.0 1.0
CG2 D:ILE194 4.5 20.2 1.0
CA D:ASP66 4.9 25.8 1.0
N D:GLU97 4.9 22.7 1.0
CZ D:PHE168 5.0 22.6 1.0

Reference:

D.Xu, W.C.Thomas, A.A.Burnim, N.Ando. Conformational Landscapes of A Class I Ribonucleotide Reductase Complex During Turnover Reveal Intrinsic Dynamics and Asymmetry Nat Commun V. 16 2458 2025.
ISSN: ESSN 2041-1723
DOI: 10.1038/S41467-025-57735-4
